35kV Indoor And Outdoor Damping Capacitance Resistance Overvoltage Protection For Substation

Brand Name : Xi'an Shendian

Model Number : SDB1-35Z

Place of Origin : China

MOQ : 1 pc.

Price : To be determined by type and quantity.

Payment Terms : T/T; L/C.

Supply Ability : 0.5M pc/year.

Delivery Time : Ex-work 1 week~1 month depends on quantity.

Packaging Details : Seaworthy package/ Customer specified.

Model : SDB1-35Z

Usage : Indoor/ Outdoor

Type : 3P Resistor-Capacitor Overvoltage Protection Device for Substation

Nominal system voltage : 35kV/ Customer specified

Nominal discharge resistance : 100Ω

Nominal discharge capacitance : 0.1μF

Contact Now

35kV Resistor-Capacitor Overvoltage Protection Device for Substation

Product introduction:

Resisor-Capacitor overvoltage protecion device is a new product developed by Shendian, which combines the advance of surge arrester and resistor-capacitor absorber. It is capable of reducing the steepness and amplitude of the operating overvoltage.

Characteristic:
1/ High voltage withstand;
2/ Small loss dissipation;
3/ MIniaturization.
Standard Technical Data:
Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.
Item Description Offered
1 Manufacture/ Country of Origin Xi'an Shendian/ China
2 Model SDB1-35Z
3 Applicable standard IEC 60099-4
5 Norminal voltage of system kV 35
7 Rated resistance Ω 100
8 Rated capacitance μF 0.1
9 SA Model YH5WZ-51/134
10 Rectangular current impulse withstand at 2ms of MOA A. peak 400

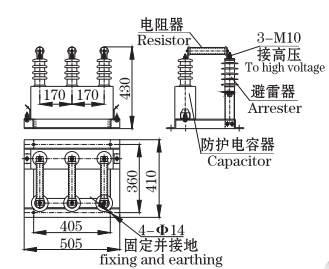

Schematic diagram:

35kV Indoor And Outdoor Damping Capacitance Resistance Overvoltage Protection For Substation
